LED pixel light

12V 7815 LED pixel module

Application:
1. Backlighting for Advertisement.
2. Signboard and Billboard.
3. Backlighting for Lighting box Sign.
Product description: 12V 7815 LED pixel module full color change
INQUIRY

12V 7815 LED pixel module full color change

♦♦ Specification

Item	12V 7815 LED pixel module
Model	XH7515S12--LED pixel module
Storage Temperature	-40℃-60℃
Operating Temperature	-40℃-60℃
Color Rendering Index(Ra)	80
Viewing Angle	120 °
Power Dissipation	0.72W
Power	0.72W
Optical Attenuation	1%
Luminous Flux	50lm
Working Voltage	DC12V
Chip Source	Taiwan Epistar
Body Material	PVC
LED Type	3 SMD 5050
Size	78*15
Lifespan	30,000hours
Certification	CE, ROHS
Color	Full color change
OEM/ODM	Welcome
Protection	IP67
Qty / String	20pcs

♦♦ Features

1. Control IC included, supporting numerous color-change effects.
2. Control by SD controller,Arduino,DMX512,Artnet.
3. PCB white color, 12V low voltage input.
4. Every 1 Leds linear separable, custom-length available.
5. Eco-green light, no UV, IR.
6. Extremely long lifespan & lower power consumption;

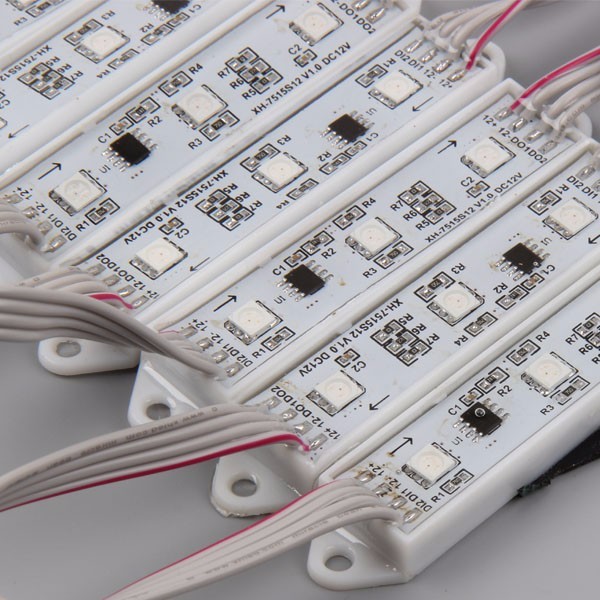

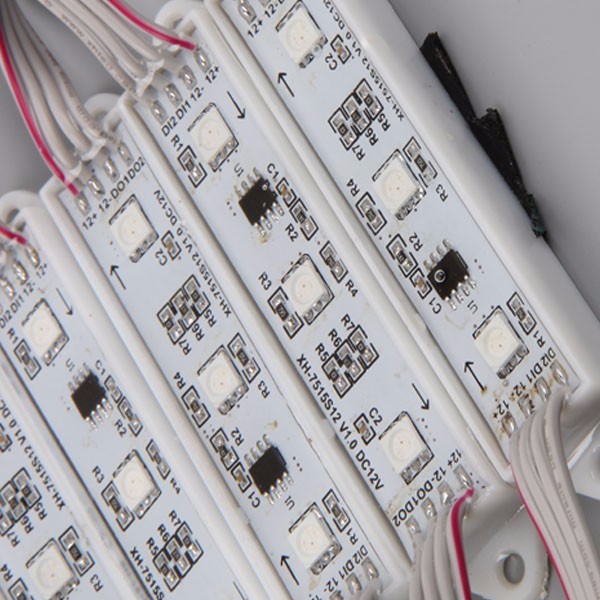

7. PVC 'pixel ' contains 3 RGB LEDs and a controller chip soldered to a PCB.
8. The pixel is 'flooded' with epoxy to make it waterproof.
9. There are two plastic flanges on each side for screw installation.
