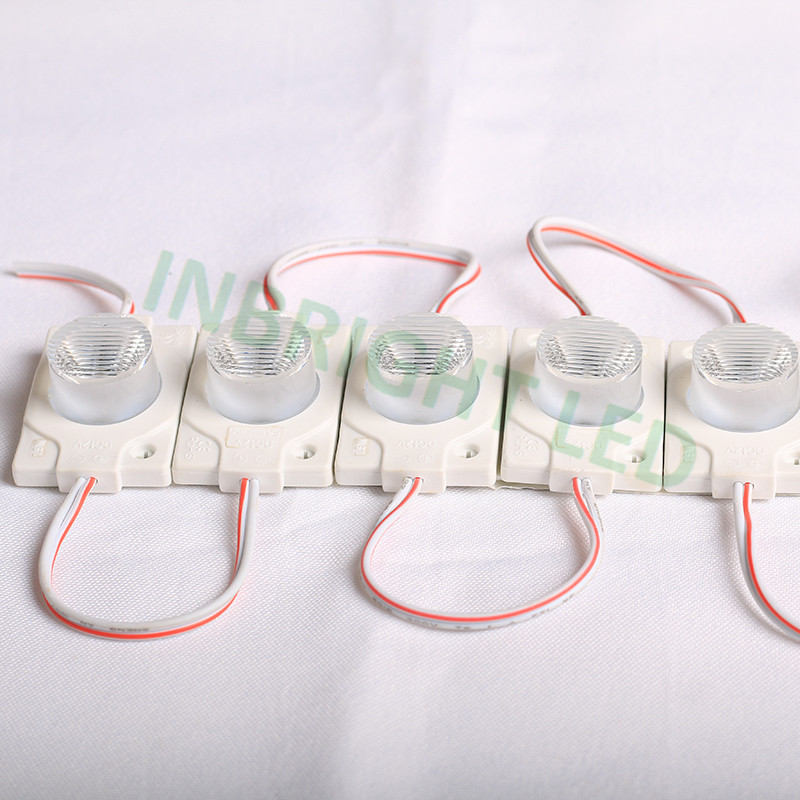

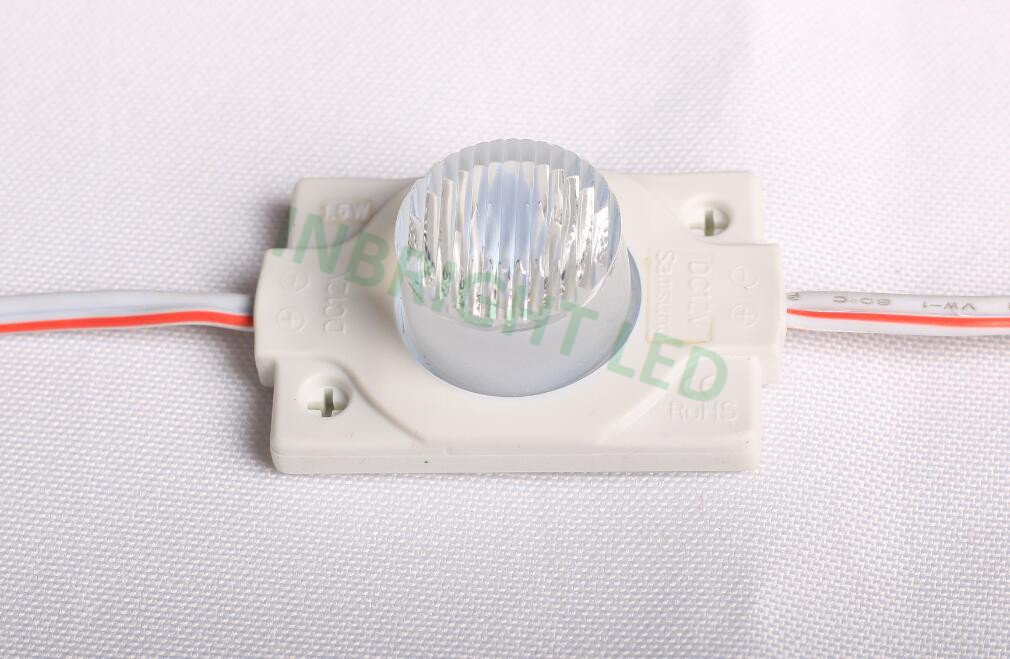

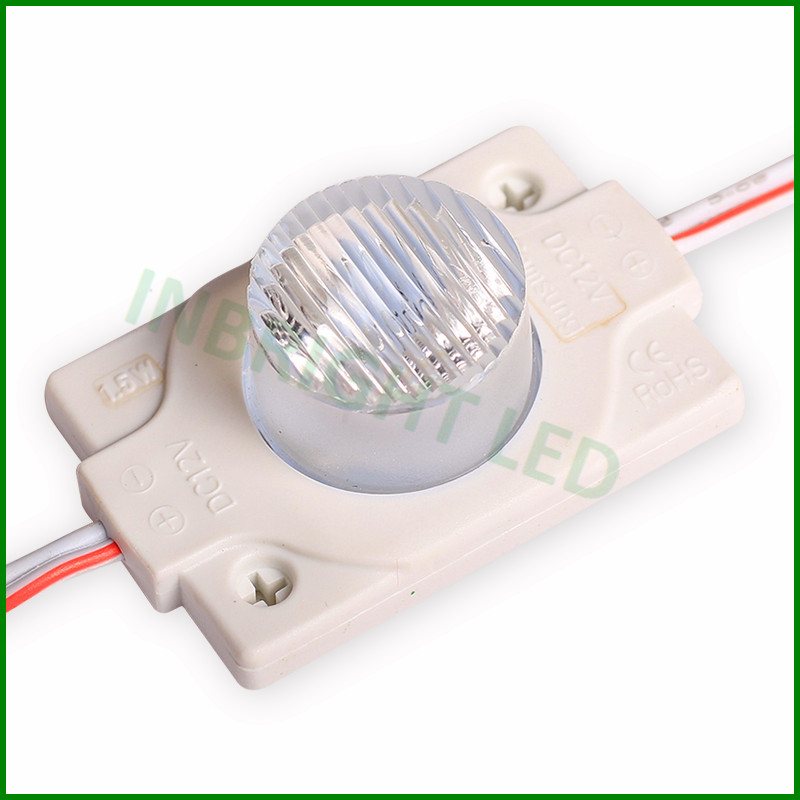

high quality DC12V 1.5W 1LED5030C-3030 LED module with Optic Lens (With 3M adhesive tape on back side of module)
|Products Name||SMD 3030 LED Module|
|LED type||SMD 3030|
|Luminous Flux||140-160lm per module|
|Light Decay||Less Than 1% After 1,000H|
Advantages of 3030 smd led module brightness higher, so by the luminous word blister evenly. SMD LED module is mainly applicable to ultra-thin light boxes, advertising signs, such as the use of backlighting. With high efficiency and energy saving, environmental protection, cold light source, no radiation, long life and so on. DC12V power supply, with Optics lens covered each 3030 led module, super high brightness, stable quality.
1.Aluminum PCB with 1.0mm thickness.
2.Virtually no maintenance.
3.Low heat, high brightness, and works well under harsh conditions.

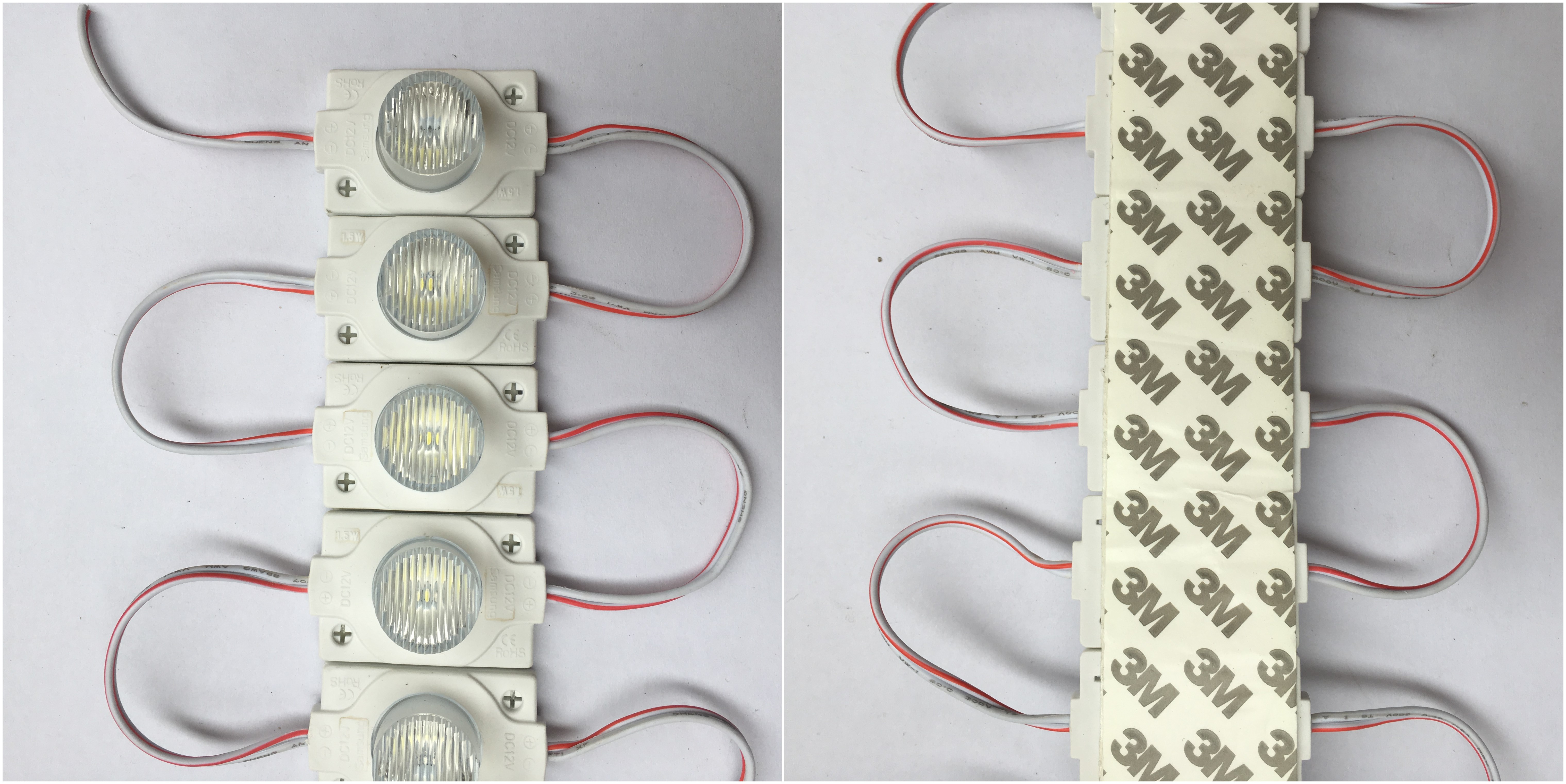

4.Including 3M adhesive tape for convenient mounting.
5.Super bright white color module, strong lighting.
6.Input voltage: DC12V, professionally designed to be fully waterproof.
7.IP 65 protection can be normally operated even in cloudy, rainy and snowy weather.
8.No RF interference.
9.Trademark and logo can be customized.
10.Long life 50,000hours+ (5years+), white LED, 50,000hours.

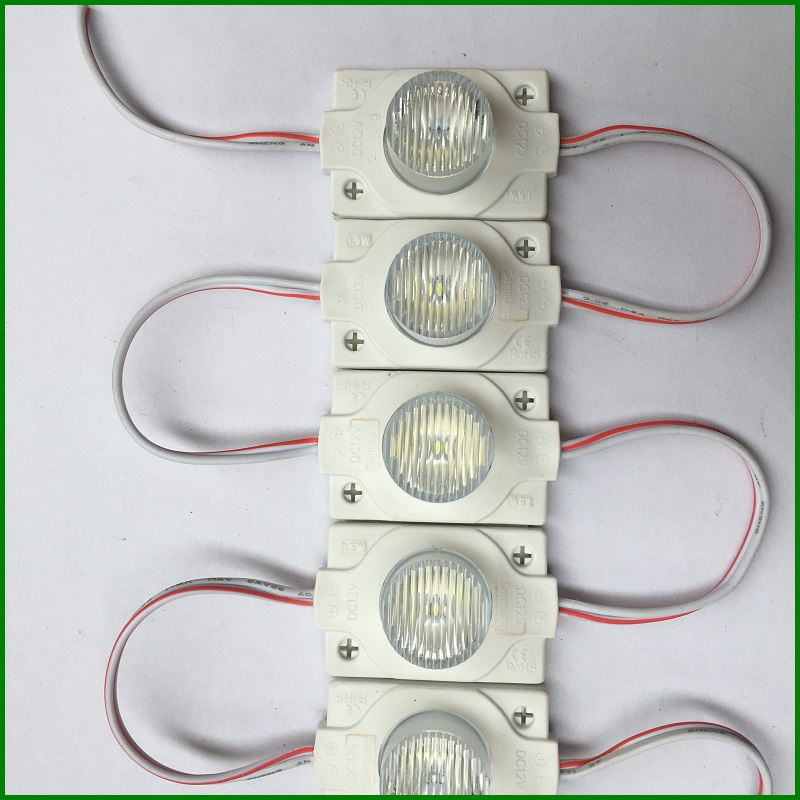

The module is 20pcs/string, user can put several strings in parallel connection , each string running a loop. Lest the nonuniform color caused by the voltage drop, the cable section of main power supply should not less than 2.5mm2
Keep it in a well-ventilated environment, good for heat dissipation.
When connecting, red wire connect to power“+”, black wire connect to power“-”.Don’t reverse.
Suggested to use brand switching power supply with safety certificate.(with short circuit, over voltage, current protection function)
