LED injection module

  • 3LED8518-2835 blue LED module
  • 3LED8518-2835 blue LED module
  • 3LED8518-2835 blue LED module
3LED8518-2835 blue LED module 3LED8518-2835 blue LED module 3LED8518-2835 blue LED module

3LED8518-2835 blue LED module

  • Application:
  • 1. Backlighting for Advertisement.
  • 2. Signboard and Billboard.
  • 3. Backlighting for Lighting box Sign.

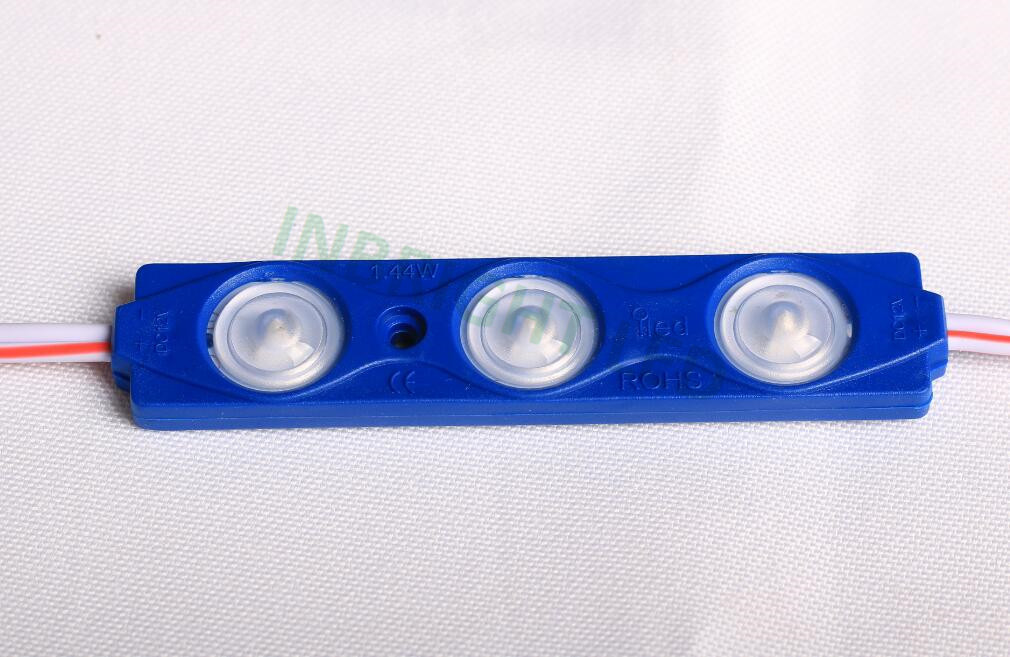

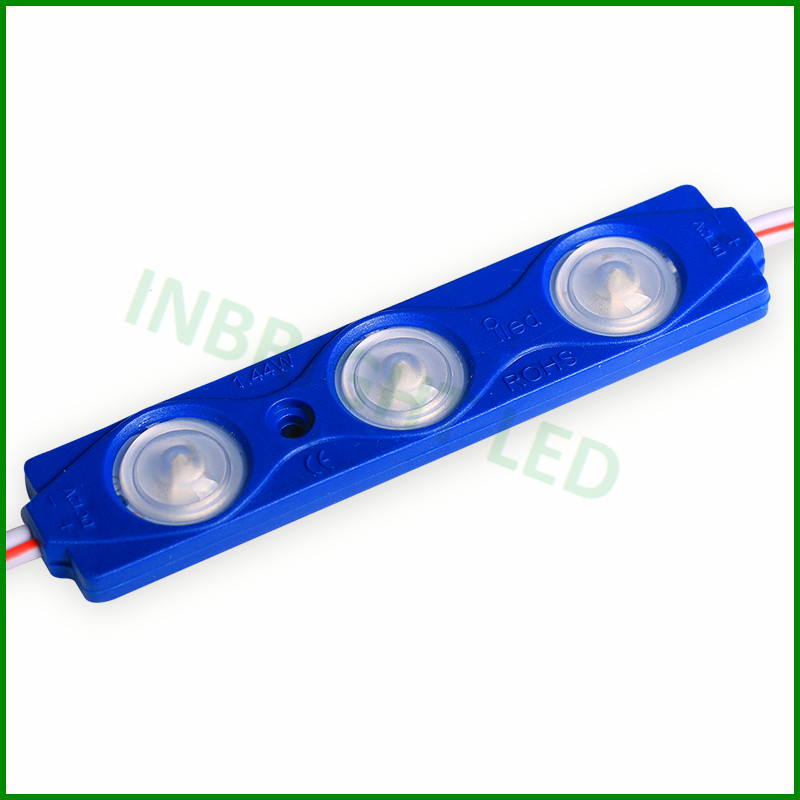

  • Product description: 12V 1.44W 3LED8518-2835 LED module with Optic Lens

high quality DC12V 1.44W  3LED8518-2835 LED module with Optic Lens (With 3M adhesive tape on back side of module)

Products Name SMD 2835 LED Module
Model NO. 3LED8518-2835
Power Consumption 1.44W
Work Voltage DC12V constant current
Work Current 120mA
Beam Angle 160°
LED type SMD 2835
LED Quantity 3pcs
Luminous Flux 100-120lm per module
Color Single color(red,yellow,blue,green,white,warm white, purple)
Material ABS&epoxy resin


Waterproof Grade IP65
Work Temperature -30-60deg
Light Decay Less Than 1% After 1,000H
Life-span 50,000H
Certificate CE&ROHS
Every string 20pcs
Warranty 3 years

Advantages of 2835 smd led module brightness higher, so by the luminous word blister evenly. SMD LED module is mainly applicable to ultra-thin light boxes, advertising signs, such as the use of backlighting. With high efficiency and energy saving, environmental protection, cold light source, no radiation, long life and so on. DC12V power supply, withOptics lens covered each 2835 led module, super high brightness, stable quality.


1.Aluminum PCB with 1.0mm thickness.

2.Virtually no maintenance.

3.Low heat, high brightness, and works well under harsh conditions.

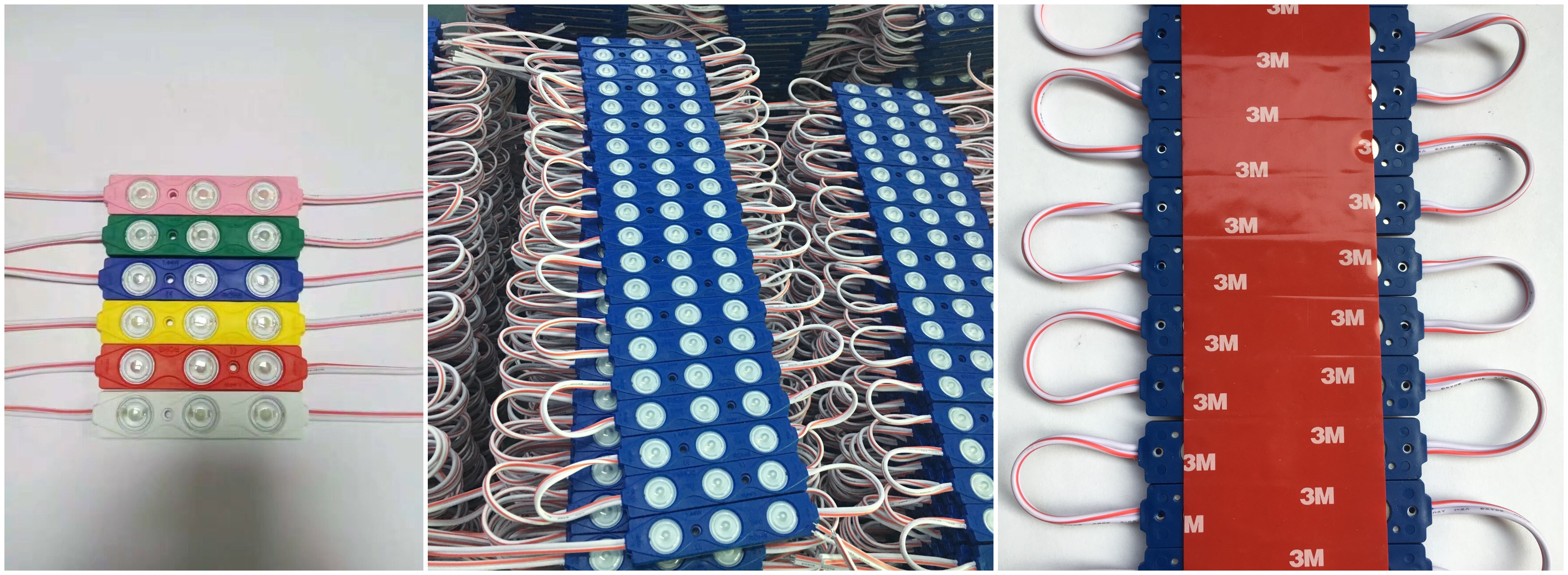

4.Including 3M adhesive tape for convenient mounting.

5.Full range of colors: red, yellow, blue, green, purple and white.

6.Input voltage: DC12V, professionally designed to be fully waterproof.

7.IP 65 protection can be normally operated even in cloudy, rainy and snowy weather.

8.No RF interference.

9.Trademark and logo can be customized.

10.Long life 50,000hours+ (5years+), white LED, 50,000hours.

Operation Instructions:

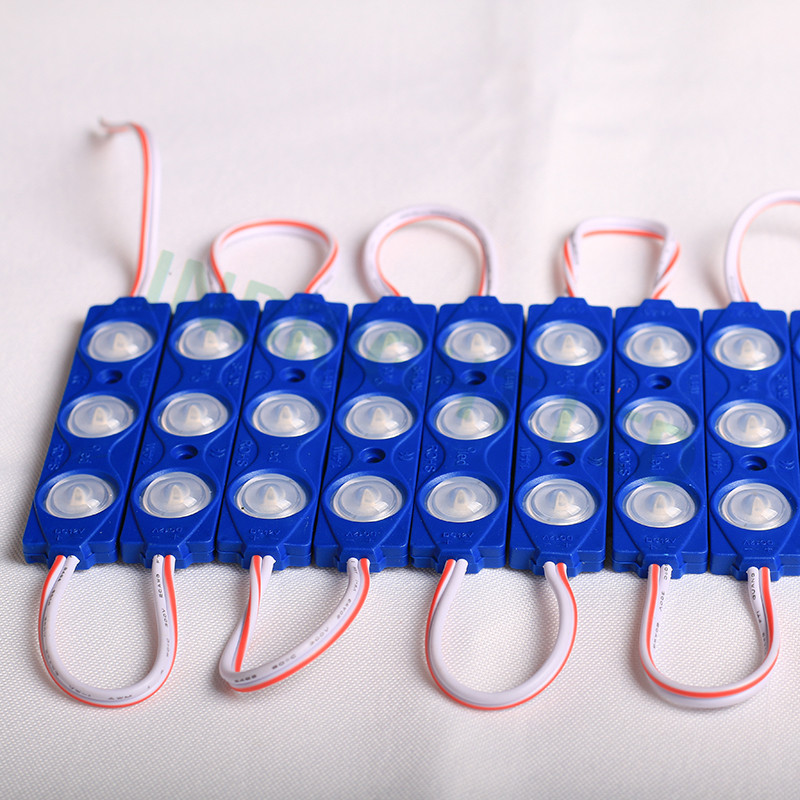

The module is 20pcs/string, user can put several strings in parallel connection , each string running a loop. Lest the nonuniform color caused by the voltage drop, the cable section of main power supply should not less than 2.5mm2

Keep it in a well-ventilated environment, good for heat dissipation.

When connecting, red wire connect to power“+”, black wire connect to power“-”.Don’t reverse.

Suggested to use brand switching power supply with safety certificate.(with short circuit, over voltage, current protection function)
